Installing MkDocs

Starting

This will be my first blog post, and I think it would be suitable to tell you how I installed MkDocs.

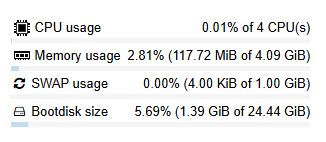

First of all make sure you have an environment you will run MkDocs on, maybe a computer with multiple services, or a separate vm/container. I prefer a separate container, so I have made one on my proxmox server. I couldn't find minimum specs so I gave my container:

  • CPU: 4 Cores
  • RAM: 4 GiB
  • SWAP: 1 GiB
  • Storage: 25 GiB

Go ahead and create the environment:

python -m venv venv
source venv/bin/activate

If you don't have pip

Install pip with the following commands (assuming you have root access):

apt update
apt install python3
apt install python3-pip python3-venv

Install MkDocs

And install MkDocs with:

pip install mkdocs-material

Creating a site

I assume you're only going to build 1 site, move to the directory where mkdocs will be installed, you can create the site with the following command:

mkdocs new .
The mkdocs.yml file will be the configuration file. My mkdocs.yml looks like below, but you can adjust it how you like according to the documentation.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
site_name: Joris And His Giganotosaurus
site_url: #https://blog.giganotosaurus.nl
site_author: Joris Jansen
google_analytics:
theme:
  name: material
  favicon: images/dino.ico
  logo: images/dino-512.png
  language: en
  features:
#    - navigation.footer
    - navigation.tabs
    - navigation.tabs.sticky
    - navigation.expand
    - navigation.path
    - toc.follow
    - toc.integrate
    - navigation.top
    - content.code.copy
  icon:
    tag:
      mcu: material/antenna
extra:
  social:
    - icon: fontawesome/brands/linkedin
      link: https://www.linkedin.com/in/joris-jansen-230a321b5/
    - icon: fontawesome/brands/reddit
      link: https://www.reddit.com/user/reddit_user2917/
    - icon: fontawesome/brands/instagram
      link: https://www.instagram.com/_joris_jansen_/
    - icon: fontawesome/solid/paper-plane
      link: mailto:jorisjansen2006@gmail.com
  tags:
    esp32: mcu
    admonition:
      note: octicons/tag-16
      abstract: octicons/checklist-16
      info: octicons/info-16
      tip: octicons/squirrel-16
      success: octicons/check-16
      question: octicons/question-16
      warning: octicons/alert-16
      failure: octicons/x-circle-16
      danger: octicons/zap-16
      bug: octicons/bug-16
      example: octicons/beaker-16
      quote: octicons/quote-16
nav:
  - Home: index.md
  - Blog:
    - Home: blog/index.md
  - About Me:
    - Myself: about-me/myself/index.md
    - My Job: about-me/job/index.md
    - My Homelab: about-me/my-homelab/index.md
use_directory_urls: false
dev_addr: '0.0.0.0:80'
plugins:
  - tags

  - blog:
      enabled: true
      blog_dir: blog
      blog_toc: true
      post_date_format: medium
      post_url_date_format: yyyy
      post_url_format: "{file}"
      post_readtime: true
      archive: true
      archive_url_date_format: yyyy
      archive_url_format: "archive/{date}"
      categories: true
      categories_name: Categories
      categories_url_format: "category/{slug}"
      post_excerpt_separator: <!-- Continue Reading -->
validation:
  links:
    unrecognized_links: ignore
markdown_extensions:
  - pymdownx.highlight:
      anchor_linenums: true
      line_spans: __span
      pygments_lang_class: true
  - pymdownx.inlinehilite
  - pymdownx.snippets
  - pymdownx.superfences
  - admonition
  - pymdownx.details

Directories

Once you have the mkdocs.yml like you want, you can really start building your site. Start by creating a directory named docs, in the folder the mkdocs.yml file is. In that folder you will place all the markdown files for the site. So go ahead and create the docs directory:

mkdir docs
cd docs
nano index.md
This index.md file will be the markdown file for the homepage of your site. Below I will post mine to show you how the layout works:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
---
hide:
  - toc
  - navigation
---
# Hi,
First of all, if you have questions or comments, you can always contact me.

I will mostly post about homelabbing and electronics. It has always been that other blogs, reddit, youtube or some deep post from 10 years ago help me solve a problem, but now I want to contribute to that. But everything you learn from me, is at your own risk.

## Contact
Via the icons at the bottom right you can reach me.

I'm here to help, but I do this for fun. So please no spam, and if I can't help, please accept it.
You can see the top rows, which states the hide section. Here I have hidden the navigation and table of content.

Preview the site

Let's say you want to take a look at the site, to see what you can change. I do this all the time, to make sure it looks good, and I don't have to change big things later on. You can preview your site with the following command:

mkdocs serve
You can visit the site at the ip the server got from your router. I recommend setting a static IP, that way you can't lose your site in the DHCP. The IP for the site set is in the configuration file, with the following rule:
1
dev_addr: '0.0.0.0:80'
Which is, the address, that it receives from your router, and the port. I have set my preview site at port 80.

To link to a page you can use the following:
This is a link to google

[This is a link to google](https://google.com)
This is a link to my homepage (via directories), with the ../ you go back 1 directory.
[This is a link to my homepage (via directories)](../../index.md)
The way I use an image for my main site, is I have a directory named images in the same directory as my index.md homepage. The way I use an image for a blog post, is I have a directory named the same as my post, in the blog/posts directory. That way I can use:
<img src="../installing-mkdocs/resources.jpg" width="50%" height="50%" />

So to explain it further, in the directory this file is located, I have a directory named 'installing-mkdocs', in that directory there is a file named 'resources.jpg'. There also are the statements width and height, I do that in percentages, because that way the image is always the same size across different devices.

Blog

As I discussed above, I have the directory blog, in this directory there is a index.md file. This file is the welcome page when you open the blog. This file is empty, because the blog plugin from my configuration file is automatically adding the post cards. The way this works, is in the blog directory, there is a directory called posts. In this directory, you create the individual posts, like this one.

On my site I add the author to my posts (which will be probably only be me), you do that by adding the following lines to the top of a post:

---
date: 2026-01-06
authors:
  - joris
categories:
  - Homelab - Services
---
I also have added the date, and a category (this are the details from the top of this post). The authors section set the authors for this post, one or multiple, by a predefined authors.yml file. In the categories section, you can create categories. If you specify them here, they will be automatically added to the post and category list by the plugin. Make sure all lines are between the 3 dashes.

The authors file looks like below, you name the authors file '.authors.yml'. With the dot before the name, you hide the file from the rest:

1
2
3
4
5
6
7
8
9
authors:
  joris:
    name: Joris Jansen
    description: Creator
    avatar: https://github.com/jorisjansen31.png
  second
    name: Second Author
    description: Writer
    avatar:

Continue Reading

I struggled with this at first, as I didn't know how to add it, but looking through the documentation I have found the setting. In the configuration file you must add the following:

1
2
3
plugins:
  - blog:
      post_excerpt_separator: <!-- 'text' -->
In the 'text' I have, 'Continue Reading', you also must place the exact line as above in the post file, to separate the post.

Titles and TOC

To create a Table Of Content, you have to write one or multiple titles. With hashtags (#), you create titles.
- 1 #, is a title that doesn't appear in the TOC
- 2 #, is a big title that does appear
- 3 # or more, is a title that appears as a sub

Admonition

Configuration

To create this information or more like heads up box inside a post, add the following to the markdown_extensions.

1
2
3
4
markdown_extensions:
  - admonition
  - pymdownx.details
  - pymdownx.superfences

Note

Yes I have copied this part from Material for Mkdocs.

Each of the supported admonition types has a distinct icon, which can be changed to any icon bundled with the theme, or even a custom icon. Add the following lines to mkdocs.yml:

1
2
3
4
theme:
  icon:
    admonition:
      <type>: <icon>
Here is a example of all the icons you can insert from the library. For me the lines below are enough, these are from the example from the example above.
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
theme:
  icon:
    admonition:
      note: octicons/tag-16
      abstract: octicons/checklist-16
      info: octicons/info-16
      tip: octicons/squirrel-16
      success: octicons/check-16
      question: octicons/question-16
      warning: octicons/alert-16
      failure: octicons/x-circle-16
      danger: octicons/zap-16
      bug: octicons/bug-16
      example: octicons/beaker-16
      quote: octicons/quote-16

Adding admonition

To add amonition to your post, insert the following, the first word after the exclamation marks sets the icon used in the title. Below are some examples with slightly different configurations.

Note

This will set note as the icon and also as the title.

!!! note
    This will set note as the icon and also as the title.

Title

This will set note as the icon and Title, as the title.

!!! note "Title"
    This will set note as the icon and Title, as the title.

This will set warning as the icon and because there is no text in the title, the title is removed.

!!! warning ""
    This will set warning as the icon and because there is no text in the title, the title is removed.
Collapsible closed by default

This will set question as the icon and make the admonition collapsible, but closed by default.

??? question "Collapsible closed by default"
    This will set question as the icon and make the admonition collapsible, but closed by default.
Collapsible opened by default

This will set question as the icon and make the admonition collapsible, but opened by default.

???+ question "Collapsible opened by default"
    This will set question as the icon and make the admonition collapsible, but opened by default.

Adding code

To add code to the post, type 3 ` above and below the code you want to add in the post.

To add code line numbers, you have to add 'linenums="1"' after the 3 ` for each code block.

Note

Normally, command line code doesn't need line numbering. Real code, like in a yaml file is nice to have.

Writing

For the file editing I use VSCode, once I have a md file I'm satisfied with, I delete the old one on my server, and move the new copied file from my PC to my server, via SCP.

For file transfer with SCP I use WinSCP. I have set up the same document layout as on my server, on my PC. That way I can just copy and move all the necessary files.

If SCP doesn't work

I had some problems with moving and accessing files, normally I just use SCP but it didn't work at the beginning. Apparently my sshd.config file was all commented out (like with the # in front of every rule), dont ask me why or how, but it was a new install. After uncommenting the file and setting the following rule to yes:

PermitRootLogin yes
And doing a few commands:
systemctl stop ssh
systemctl start ssh
systemctl enable ssh
systemctl status ssh
And by that SCP worked!

Building

Let's say you're done with writing your site, and you want to upload it to the web. The only thing you have to do with MkDocs is:

mkdocs build
This will create a new folder named site, this contains all the necassary files for the static site. I'm going to explain how to build your site with your own webserver, as that's the way I do it.

Nginx

First, go back to the root directory, install and enable nginx:

cd /
apt update
apt install nginx
systemctl start nginx
systemctl enable nginx

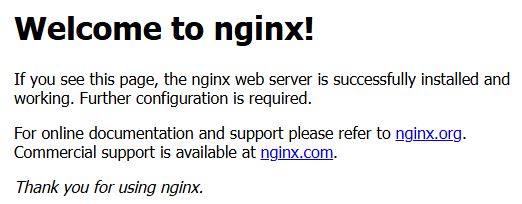

Now you should be able to see the welcome page as below, on the address of your server.

Configuration

Now, first delete the old html file and create the new configuration file:

cd /var/www/html
rm index.nginx-debian.html
cd /etc/nginx/sites-available
nano blog
This will be my configuration for the website, adjust the domain name and ip to your own:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
server {
        listen 80;
        server_name 192.168.20.52 blog.giganotosaurus.nl;
        root /var/www/html/site;
        index index.html;

        location / {
                try_files $uri $uri/ =404;
        }
}
Now paste the site folder from MkDocs, inside of the /var/www/html folder. To enable the site use the following command, this will link the sites-available to sites-enabled:
ln -s /etc/nginx/sites-available/blog /etc/nginx/sites-enabled
nginx -t
After you did all the configuration, you need to restart nginx:
systemctl restart nginx
systemctl status nginx
Basically if you want to update the site, you can edit the files, rebuild with MkDocs, and reupload the site folder, as last restart nginx and you should be good to go!
